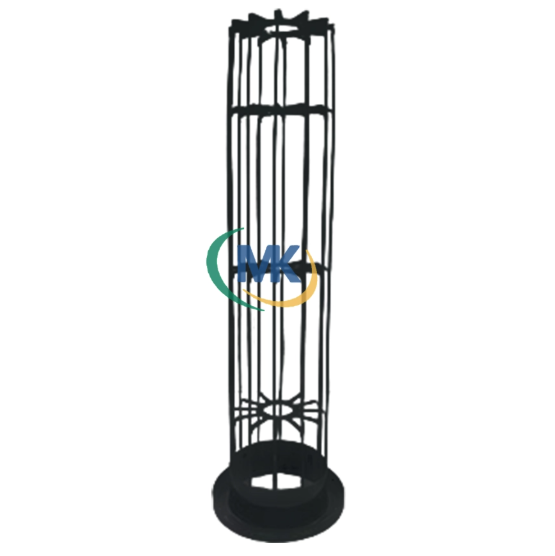

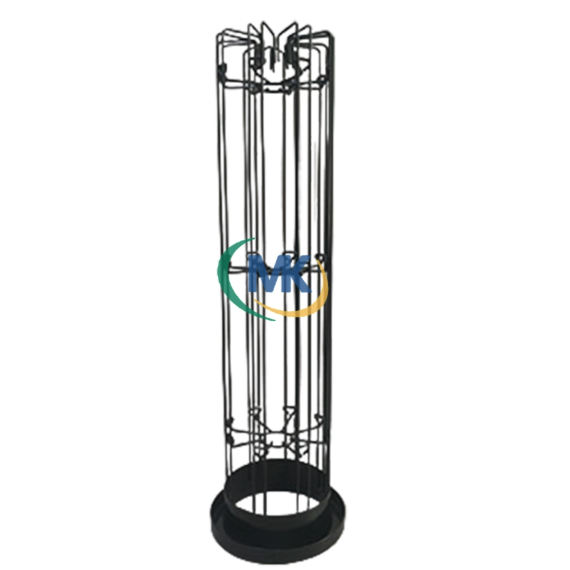

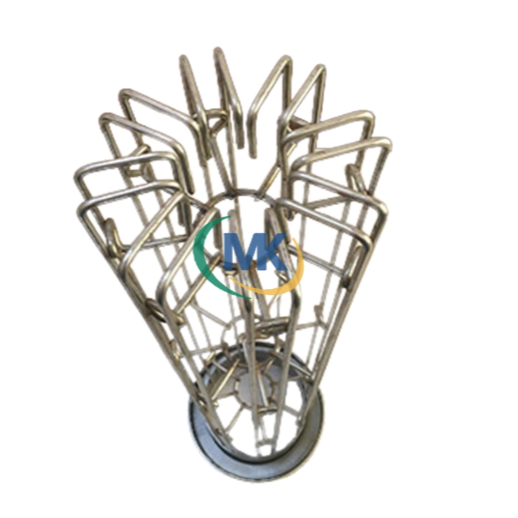

Flat Bag Cage

MingKai's Flat Bag Cages are specifically designed for high-efficiency dust collection in industrial environments with limited space. The innovative flat-panel design maximizes filtration area while maintaining a compact footprint, making them ideal for applications requiring both efficiency and space-saving solutions. Constructed from high-quality carbon steel or stainless steel with optional anti-corrosion coatings, these cages ensure reliable performance in harsh industrial conditions.

Product Advantages

• Optimized flat-panel design for maximum filtration area in limited spaces

• Highly efficient dust collection performance with minimal pressure drop

• Constructed from high-quality carbon steel or stainless steel

• Optional anti-corrosion coatings for harsh industrial conditions

• Lightweight yet robust structure for easy handling and long service life

• Customizable dimensions to fit specific equipment requirements

• Compatible with a wide range of filter media materials

Material Properties

• Available in Carbon Steel, SS304, SS316L, 310S Heat-Resistant Steel

• Surface Treatment Options: Galvanized, Epoxy Coated, PTFE Coated

Production Capacity

Daily Output: Customizable based on order requirements

Standard Dimensions: Width 200 - 600mm, Height 600 - 4000mm, other sizes upon request

Key Applications

Ideal for industries requiring efficient dust collection in limited spaces:

Mining

Cement Production

Power Generation

Metallurgy

Product Specifications

Dimensions

Customizable (Standard Width: 200 - 600mm, Height: 600 - 4000mm)

Material Options

Carbon Steel, SS304, SS316L, 310S Heat-Resistant Steel

Surface Treatment

Galvanized, Epoxy Coated, PTFE Coated

Wire Diameter

3.0mm - 5.0mm

Frame Thickness

2.0mm - 4.0mm

Connection Type

Snap Ring, Flange Connection (Customizable)
