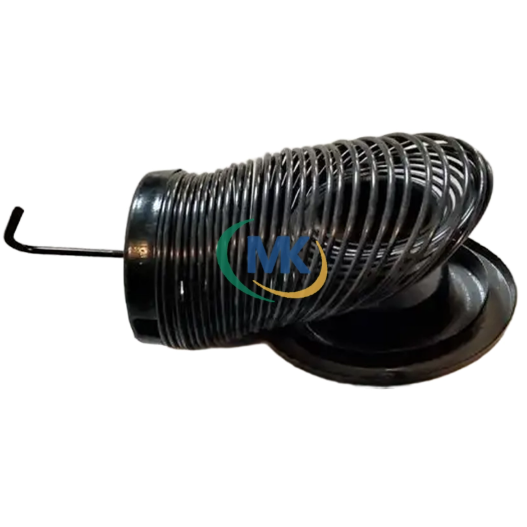

Spring Filter Bag Cage
MingKai's Spring Filter Bag Cages are engineered for quick and easy installation in pulse-jet dust collectors. Featuring a unique spring-loaded design, these cages simplify maintenance by eliminating the need for tools during replacement. Constructed from high-quality carbon steel or stainless steel with optional surface treatments, our spring filter bag cages ensure reliable performance and extended service life in various industrial applications.
Product Advantages
Spring-loaded design for tool-free installation and removal
Reduced maintenance time by up to 50% compared to traditional cages
High-tensile steel construction for superior durability
Precision manufacturing ensures consistent dimensions and performance
Optional anti-corrosion coatings for harsh environments
Improved filtration efficiency through optimized cage geometry
Available in standard and custom configurations to meet specific requirements
Material Properties
Base Material: High-quality carbon steel or stainless steel
Surface Treatment Options: Galvanized, Epoxy Coated, PTFE Coated
Spring Material: High-tensile stainless steel for maximum flexibility
Production Capacity
Daily Output: Customizable based on order requirements
Standard Dimensions: Diameter 120mm - 180mm, Length up to 6 meters (customizable)
Key Applications
Ideal for industries requiring efficient dust collection with frequent maintenance:
Mining
Cement Production
Power Generation
Metallurgy
Product Specifications
Diameter Range
120mm - 180mm
Length
Up to 6 meters (customizable)
Wire Diameter
3.0mm - 5.0mm
Surface Treatment
Galvanized, Epoxy Coated, PTFE Coated
Connection Type
Spring Clip Connection (Tool-Free)
Temperature Resistance
-40°C to +180°C (Standard), Up to +260°C (Specialized)
Technical Parameters
Core Specifications
| Product Name | Spring Filter Bag Cage |
|---|---|
| Model | MK-SBC Series |
| Diameter Range | 120mm - 180mm |
| Length | Up to 6 meters (customizable) |
| Wire Diameter | 3.0mm - 5.0mm |
| Spring Material | High-tensile stainless steel |
| Surface Treatment | Galvanized, Epoxy Coated, PTFE Coated |
| Connection Type | Spring Clip Connection (Tool-Free) |
Chemical Properties
| Corrosion Resistance | Varies by material and surface treatment |
|---|---|
| Temperature Resistance | -40°C to +180°C (Standard), Up to +260°C (Specialized) |
| Surface Friction | Low friction surface reduces dust adhesion |
Structural Characteristics
| Tensile Strength | 500-600 MPa (Carbon Steel), 550-750 MPa (Stainless Steel) |
|---|---|
| Spring Elasticity | Maintains over 95% elasticity after 10,000 compression cycles |
| Coating Adhesion | ASTM D3359 Class 5 adhesion rating |
