Galvanized Steel Wire Cage

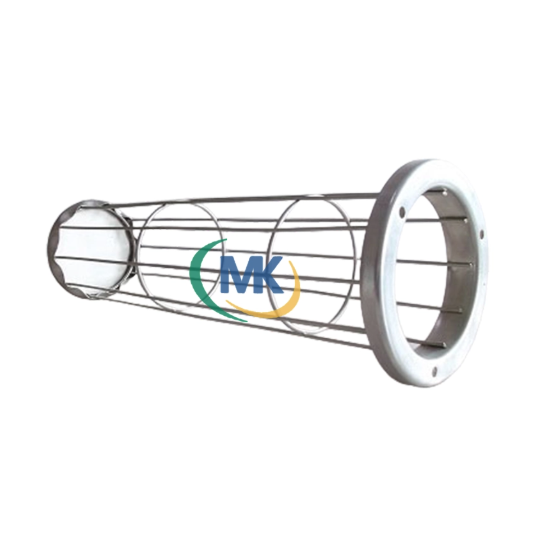

MingKai's Galvanized Steel Wire Cages are engineered to provide robust structural support for filter bags in industrial dust collection systems. Through a specialized hot-dip galvanization process, these cages exhibit exceptional corrosion resistance, making them ideal for harsh environments. The smooth galvanized surface minimizes bag abrasion, extending filter life and reducing maintenance costs. Our cages are precision-welded to ensure uniform wire spacing and structural integrity, providing reliable performance even under high-pressure cleaning cycles. Available in various configurations, they can be customized to meet specific application requirements.
Product Advantages
Hot-dip galvanized coating for superior corrosion resistance
Smooth surface finish to minimize filter bag wear
Precision welding ensures uniform wire spacing
High-strength construction for long-term durability
Customizable dimensions and configurations
Technical Features
Available in various wire diameters and ring spacing
Multi-ring design for enhanced structural stability
Compatible with various filter bag materials
Designed for easy installation and removal
Optional anti-corrosion treatments available
Production Capacity
Daily Output: 1,500-2,500 units of standard size cages
Custom sizes and configurations available upon request
Key Applications
Ideal for industrial environments requiring high corrosion resistance and durability:
Chemical Processing
Waste Incineration
Water Treatment
Automotive Manufacturing
Cement Production
Power Generation
Product Specifications
Model
MK-Galvanized Series
Width Range
100mm - 500mm (customizable)
Height Range
500mm - 8000mm (customizable)
Wire Diameter
2.5mm - 6.0mm (standard options)
Ring Spacing
50mm - 250mm (customizable)
Galvanization Thickness
50μm - 120μm (depending on application)
Temperature Resistance
Up to 260°C (500°F) without significant degradation
Corrosion Resistance
Excellent in most industrial environments
Surface Finish
Smooth, uniform galvanized coating
Technical Specifications
Physical Properties
| Base Material | High-quality low-carbon steel |
|---|---|
| Galvanization Method | Hot-dip galvanizing |
| Wire Diameter | 2.5mm - 6.0mm |
| Galvanized Coating Thickness | 50μm - 120μm (standard: 85μm) |
| Width | 100mm - 500mm (customizable) |
| Height | 500mm - 8000mm (customizable) |
| Ring Spacing | 50mm - 250mm (customizable) |
| Longitudinal Support | 6 - 16 wires (depending on size) |
| Surface Finish | Smooth, uniform, free of burrs |
Performance Characteristics
| Maximum Operating Pressure | 8 kPa (11.6 psi) |
|---|---|
| Recommended Air-to-Cloth Ratio | 0.8 - 1.8 m/min |
| Filtration Area | 0.4 - 8.0 m² (depending on size) |
| Cleaning Method Compatibility | Pulse-jet, Reverse Air, Shaker |
Thermal & Chemical Properties
| Temperature Resistance | Up to 260°C (500°F) continuous operation |
|---|---|
| Corrosion Resistance |
|
| Salt Spray Test | Minimum 500 hours before first signs of corrosion |
Standard Configurations
| Top Configuration | Flange, Snap Ring, Cap, Venturi Tube (optional) |
|---|---|
| Bottom Configuration | Closed, Open, Conical |
| Surface Treatment Options |
|
