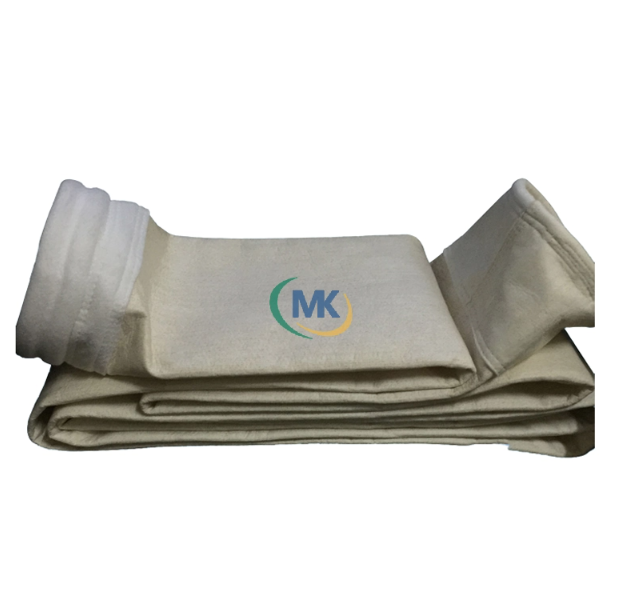

Metamax High-Temperature Filter Bag
Metamax High-Temperature Filter Bag
Our Metamax High-Temperature Filter Bags are engineered to provide exceptional performance in the most demanding industrial environments. With four specialized designs including round (pulse jet), elliptical (asphalt mixing), circular (reverse air) and envelope styles, these filter bags deliver reliable filtration in high-temperature applications up to 240°C. Constructed with premium Metamax fibers and reinforced base fabric, they offer superior strength, abrasion resistance, and chemical stability, ensuring extended service life and consistent filtration efficiency.
Product Advantages
Premium Metamax fibers for exceptional high-temperature performance
Reinforced base fabric construction for superior strength and durability
Four specialized designs to meet diverse industrial requirements
Custom manufacturing capabilities to exact specifications
Material Properties
Metamax fiber blend for optimal temperature resistance and filtration
Advanced needle punching technology for uniform structure
Precision finishing processes including singeing, calendering and heat setting
High tensile strength and dimensional stability under extreme conditions
Production Capacity
Daily Output: 1000 - 1500 units (custom specifications available)
Standard sizes from 120mm to 180mm diameter, other sizes upon request
Key Applications
Ideal for industries requiring high-temperature filtration solutions in demanding environments:
Asphalt Mixing
Kiln Exhaust
Metal Smelting
Powder Metallurgy
Product Specifications
Temperature Resistance
Continuous: ≤200°C; Instant: ≤240°C
Material

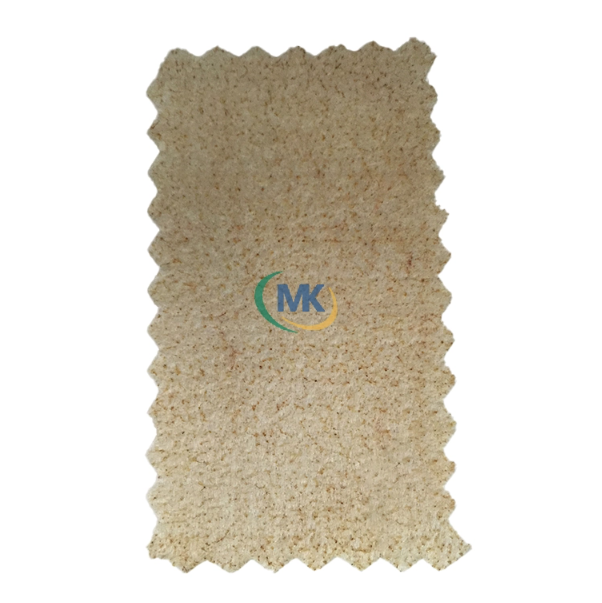

Metamax fiber with Metamax base fabric
Weight
450 | 500 g/m² ±5%
Thickness
1.7 ±0.1 mm
Air Permeability
15 ±20% m³/m²·min @127Pa
Filtration Velocity
≤1.2 m/min
Technical Parameters
Core Specifications
| Product Name | Metamax High-Temperature Filter Bag |
|---|---|
| Material | Metamax fiber with Metamax base fabric |
| Weight (g/m²) | 450 | 500 ±5% |
| Thickness (mm) | 1.7 ±0.1 |
| Air Permeability | 15 ±20% m³/m²·min @127Pa |
| Filtration Velocity | ≤1.2 m/min |
| Continuous Operating Temp. | ≤200°C |
| Instant High Temp. | ≤240°C |
Chemical Properties
| Acid Resistance | Excellent |
|---|---|
| Alkali Resistance | Fair (moderate resistance) |
| Oxidation Resistance | Excellent |
| Hydrolysis Resistance | Fair (moderate resistance) |
Mechanical Characteristics
| Tensile Strength (N/5*20cm) | Warp: >750 | Weft: >1100 |
|---|---|
| Elongation at Break (%) | Warp: <20 | Weft: <40 |
| Abrasion Resistance | Excellent |
| Finish Treatment | Singeing, calendering, heat setting |
