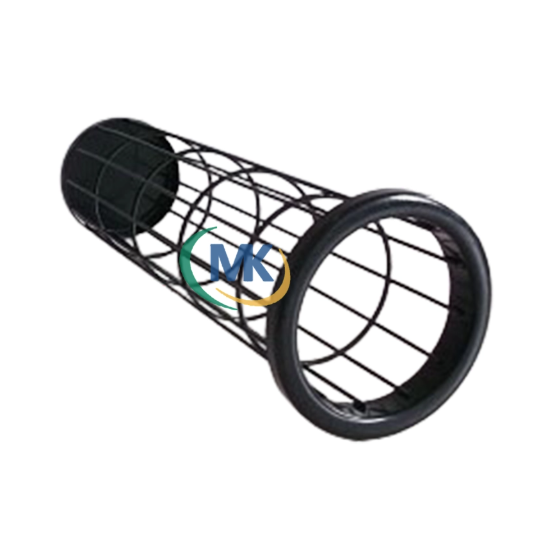

Silicone-Coated Bag Cage
Silicone-Coated Bag Cage
Our Silicone-Coated Bag Cage is engineered to provide exceptional protection and performance in demanding industrial environments. The high-quality silicone coating offers superior corrosion resistance, heat tolerance, and anti-sticking properties, making it ideal for applications involving high temperatures, moisture, or sticky particulate matter. This innovative solution extends filter bag life, reduces maintenance costs, and enhances overall system efficiency.
Product Advantages
High-temperature resistance up to 250°C (482°F)
Excellent corrosion protection against acids, alkalis, and moisture
Non-stick surface reduces dust adhesion and improves cleaning efficiency
Smooth finish prevents filter bag abrasion and extends service life
Resistant to oxidation and chemical degradation
Enhanced durability for long-term use in harsh environments
Customizable dimensions to fit various baghouse configurations
Coating Properties
Silicone thickness: 0.1-0.3mm
Hardness: 40-60 Shore A
Adhesion strength: ≥5MPa
Dielectric strength: ≥20kV/mm
Water absorption: ≤0.5%
Color: Standard black, other colors available upon request
Applications
Ideal for industries and processes involving:
High-temperature flue gas filtration
Chemical processing with corrosive agents
Sticky or oily particulate matter
Moist or humid environments
Food and pharmaceutical production (FDA-compliant option available)
Key Applications
Perfect for challenging industrial environments:
Power Generation
Waste Incineration
Chemical Processing
Cement Production
Product Specifications
Standard Sizes
Diameter: 120mm-160mm; Length: 2m-8m (custom sizes available)
Wire Diameter
3.0mm-5.0mm (depending on application)
Temperature Resistance
Continuous: 200°C (392°F); Short-term: 250°C (482°F)
Corrosion Resistance
Excellent resistance to most acids, alkalis, and moisture
Vertical Rods
12-24 rods (customizable based on requirements)
Ring Spacing
100mm-200mm (optimized for support and airflow)
Technical Parameters
Core Specifications
| Product Name | Silicone-Coated Bag Cage |
|---|---|
| Model | SC Series |
| Base Material | Carbon steel, galvanized steel, or stainless steel |
| Coating Material | High-temperature silicone rubber |
| Coating Thickness | 0.1-0.3mm |
| Wire Diameter | 3.0mm-5.0mm |
| Standard Sizes | Diameter: 120mm-160mm; Length: 2m-8m (custom sizes available) |
| Surface Finish | Smooth, non-stick silicone coating |
Chemical Properties
| Acid Resistance | Good resistance to weak acids; limited resistance to strong acids |
|---|---|
| Alkali Resistance | Good resistance to weak alkalis; limited resistance to strong alkalis |
| Solvent Resistance | Resistant to many organic solvents; check compatibility for specific solvents |
| Oxidation Resistance | Excellent |
Thermal Characteristics
| Continuous Service Temperature | 200°C (392°F) |
|---|---|
| Maximum Short-term Temperature | 250°C (482°F) |
| Thermal Expansion Coefficient | 1.5-2.0 × 10⁻⁴ /°C |
| Thermal Conductivity | 0.2-0.3 W/(m·K) |
Mechanical Properties
| Tensile Strength | ≥500 MPa (base material) |
|---|---|
| Elongation | ≥20% (base material) |
| Coating Hardness | 40-60 Shore A |
| Coating Adhesion | ≥5MPa |
