Product Description

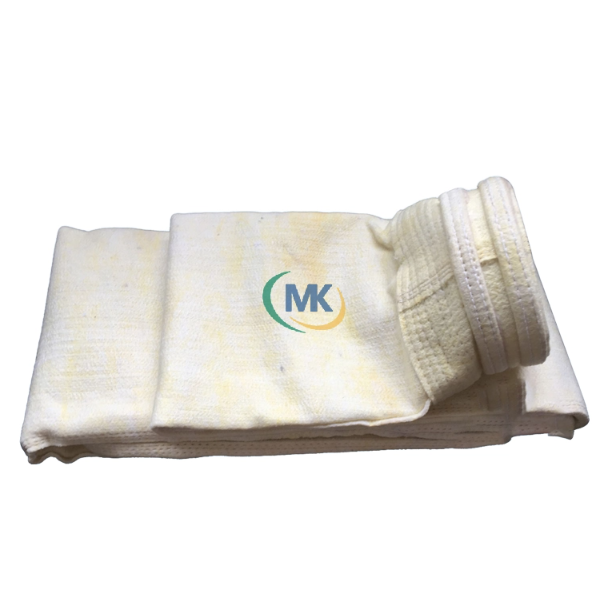

FMS Filter Bag
Engineered to excel in the most demanding industrial environments, our FMS Filter Bags (Fluorine-Modified Silicone Filter Bags) offer exceptional resistance to high temperatures, humidity, oil, and corrosive substances. These filter bags are ideal for applications requiring reliable performance under综合恶劣工作环境, such as waste incineration, steel processing, and chemical manufacturing.
Key Features
High-temperature resistance up to 280°C (536°F)
Excellent resistance to humidity, oil, and corrosive substances
Enhanced filtration efficiency with special coating treatment
High tensile strength and dimensional stability
Performance Benefits
Long service life even in harsh operating conditions
Customizable for any application requirements
High dust-holding capacity and low pressure drop
Compliant with international quality and safety standards
Applications
Waste Incineration
Steel Processing
Chemical Manufacturing
Power Generation
Product Specifications
Temperature Resistance
Continuous: ≤260°C; Short-term: ≤280°C
Material

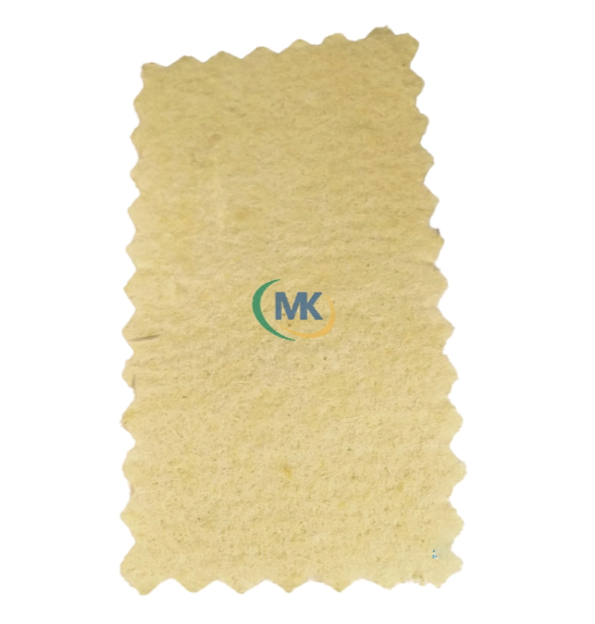

Composite fiber + glass fiber base fabric
Gram Weight
950 g/m²
Thickness
3.2±0.3mm
Air Permeability
6±20% m³/m²·min @127pa
Production Capacity
1.5 million square meters of felt annually
Operation Guide
Pre-installation Inspection
Inspect the FMS filter bag for any signs of damage, such as tears or holes. Ensure compatibility with your filtration system and operating conditions.
Proper Installation
Handle the filter bag with care to avoid damage. Install according to manufacturer specifications, ensuring proper tension and sealing to prevent bypass and ensure optimal filtration efficiency.
System Startup
Gradually increase temperature and airflow to allow the filter bag to condition. Monitor pressure differentials and adjust as needed to ensure stable operation.
Regular Maintenance
Monitor system performance regularly. Conduct visual inspections and replace the filter bag when pressure differentials exceed recommended levels or signs of wear are evident.
Operation Checklist
Verify filter bag dimensions and specifications
Ensure proper tensioning during installation
Monitor and record pressure differentials
Follow manufacturer's cleaning cycle recommendations
Safety Regulations
Temperature Hazard
Avoid exposing the FMS filter bag to temperatures exceeding its maximum rating of 280°C. Ensure proper ventilation and cooling systems are in place to maintain safe operating temperatures.
Handling Precautions
Wear appropriate protective clothing, gloves, and respiratory protection when handling filter bags. Avoid inhaling dust or fibers generated during cutting or installation.
Chemical Exposure
While the FMS filter bag has good chemical resistance, prolonged exposure to certain chemicals may degrade performance. Refer to chemical compatibility charts for specific applications.
Safety Certifications
ISO 9001:2015
CE Certification
GB/T 6006.1
UL 94 V-0
Technical Parameters
Core Specifications
| Product Name | FMS Filter Bag (Fluorine-Modified Silicone Filter Bag) |
|---|---|
| Material | Composite fiber + glass fiber base fabric |
| Gram Weight (g/m²) | 950 |
| Thickness (mm) | 3.2±0.3 |
| Air Permeability (m³/m²·min @127pa) | 6±20% |
| Filtration Wind Speed (m/min) | <0.8 |
| Breaking Strength (Warp, N/5*20cm) | >1600 |
| Breaking Strength (Weft, N/5*20cm) | >1600 |
| Elongation at Break (Warp, %) | <10 |
| Elongation at Break (Weft, %) | <10 |
| Continuous Operating Temp. | ≤260°C |
| Short-term High Temp. | ≤280°C |
Chemical Compatibility
| Chemical Substance | Compatibility | Notes |
|---|---|---|
| Acids (dilute) | Good | 长期接触可能需要监测 |
| Acids (concentrated) | Fair | 可能需要特殊处理 |
| Bases | Good | 正常使用条件下稳定 |
| Oxidizing Agents | Poor | 不推荐使用 |
| Organic Solvents | Fair | 视具体溶剂而定 |
