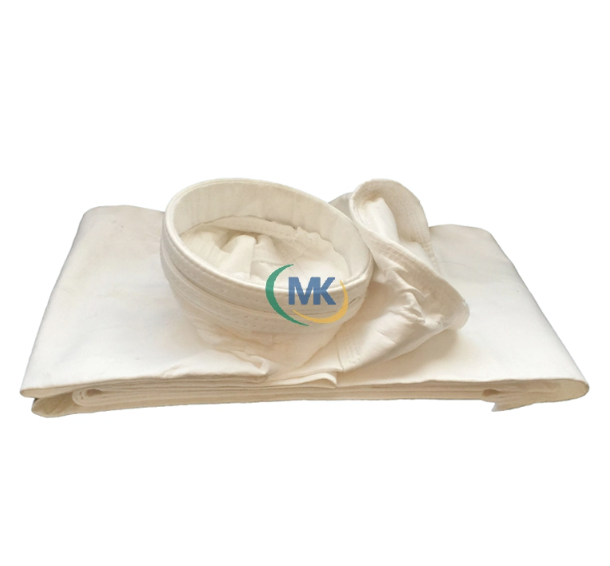

Woven Fiberglass Filter Bag
High-Temperature & Corrosion-Resistant Filtration Solution
Engineered for extreme industrial environments, our woven fiberglass filter bags withstand continuous 500°C temperatures and resist acid/alkali corrosion (pH 2-12). Ideal for coal-fired boilers, waste incinerators, and metallurgical kilns, ensuring stable dust capture and reducing equipment wear.
Key Features
Ultra-high temperature resistance (500°C continuous, 550°C peak)
High-strength woven structure (warp tensile strength ≥1200N/5cm)
Uniform pressure design, 30% improvement in cake release rate
Performance Benefits
Initial operating resistance ≤150Pa, 15% energy savings
Powder-coated cage frames, corrosion life extended to 8 years
Optional "full bag status indicator"
Applications
Coal-Fired Boilers
Waste Incinerators
Metallurgical Kilns
Product Specifications
Temperature Resistance
500°C (Continuous)
Acid/Alkali Resistance
pH 2-12
Filtration Efficiency
≥99.9% (5μm)
Warp Tensile Strength
≥1200 N/5cm
Service Life
12-18 Months
Applications
Coal-Fired Boilers / Waste Incinerators / Metallurgical Kilns
Technical Parameters
Core Specifications
| Material | Woven Fiberglass |
|---|---|
| Weight (gsm) | 650-750 |
| Thickness (mm) | 1.8 |
| Air Permeability (L/M²/S) | 200-350 |
| Finish Treatment | Heat setting, singeing, calendaring |
| Temperature Resistance | 204°C (Continuous), 240°C (Instant) |
| Tensile Strength (N/5×20cm) - Warp | ≥1300 |
| Tensile Strength (N/5×20cm) - Weft | ≥1450 |
| Tensile Elongation (%) - Warp | ≤50 |
| Tensile Elongation (%) - Weft | ≤55 |
Chemical Properties
| Acid Resistance | Excellent |
|---|---|
| Alkali Resistance | Excellent |
| Abrasion Resistance | Good |
| Hydrolysis Stability | Medium |
Filtration Performance
| Filtration Efficiency | ≥99.9% (5μm) |
|---|---|
| Initial Resistance | ≤150 Pa |
| Normal Operating Resistance | 1200-1800 Pa |
Standard Sizes
| Standard Diameter | Φ120~200mm |
|---|---|
| Standard Length | 1000~6000mm |
| Custom Options | Available |
