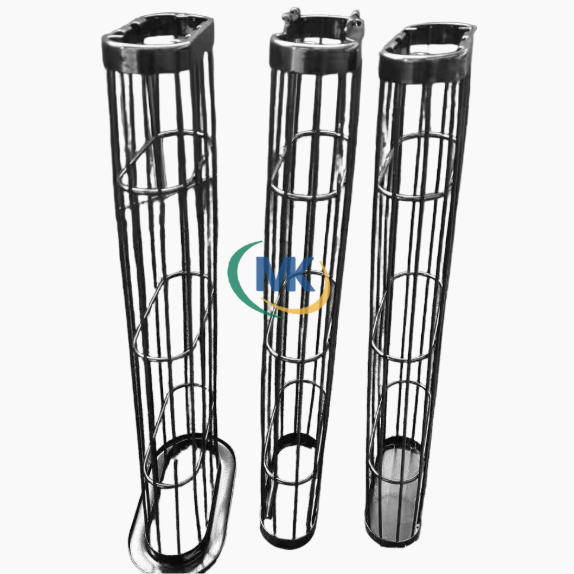

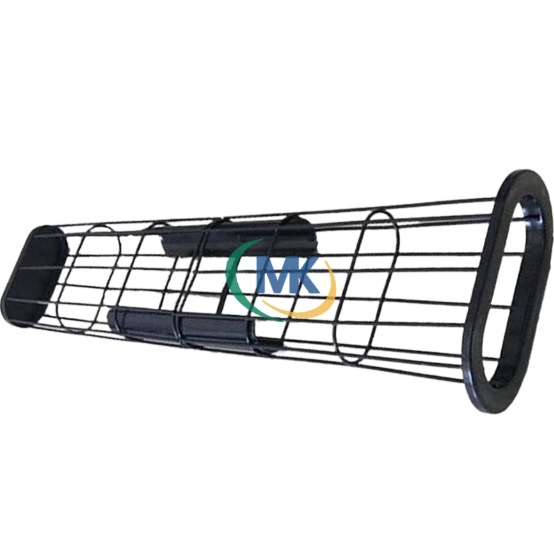

Flat Type Filter Bag Cage
Our Flat Type Filter Bag Cage is expertly engineered to provide reliable support for flat filter bags in various industrial dust collection systems. Designed with precision, these cages ensure optimal filtration efficiency by maintaining the proper shape of the filter bag, preventing collapse and ensuring uniform airflow distribution. The flat design allows for higher filtration area per unit volume compared to traditional round cages, making it ideal for applications with limited space. Constructed from high-quality materials, our flat cages offer excellent corrosion resistance and durability, ensuring long service life even in harsh environments.
Product Advantages
Optimized flat design for higher filtration area per unit volume
Precision-engineered to ensure proper bag shape and prevent collapse
Uniform wire spacing for even airflow distribution and efficient filtration
High-quality materials with excellent corrosion and abrasion resistance
Available in various configurations to fit different flat bag designs
Customizable surface treatments (galvanized, epoxy-coated, etc.) for specific environments
Easy installation and removal for simplified maintenance procedures
Material Options
Low-carbon steel wire with various surface treatments
Galvanized steel for enhanced corrosion resistance
Stainless steel (304, 316L) for high-temperature and corrosive environments
Epoxy-coated steel for superior chemical resistance
Production Capacity
Daily Output: 5,000-8,000 pieces, depending on specifications
Standard Sizes: Customizable to fit various flat bag dimensions (custom designs available)
Key Applications
Ideal for industrial dust collection systems requiring high efficiency and compact design:
Pharmaceutical
Food Processing
Chemical
Woodworking
Product Specifications
Standard Sizes
Customizable to fit various flat bag dimensions
Wire Diameter
3.0mm-5.0mm (custom sizes available)
Frame Construction
Multi-rib design for maximum structural integrity
Surface Treatment
Galvanized, epoxy-coated, powder-coated, stainless steel
Temperature Resistance
Up to 300°C (572°F) depending on material selection
Corrosion Resistance
Excellent resistance in various environments
Technical Parameters
Core Specifications
| Product Name | Flat Type Filter Bag Cage |
|---|---|
| Model | FT Series |
| Material Options | Low-carbon steel, galvanized steel, stainless steel (304, 316L), epoxy-coated steel |
| Wire Diameter | 3.0mm-5.0mm |
| Surface Treatment | Galvanized, epoxy-coated, powder-coated, stainless steel |
| Standard Sizes | Customizable to fit various flat bag dimensions |
| Frame Construction | Multi-rib design with reinforced edges |
| Finish | Smooth surface to prevent bag abrasion |
Chemical Properties
| Corrosion Resistance | Excellent (varies by material selection) |
|---|---|
| Acid Resistance | Stainless steel and epoxy-coated options offer good acid resistance |
| Alkali Resistance | Stainless steel and epoxy-coated options offer good alkali resistance |
Thermal Characteristics
| Temperature Resistance | Low-carbon steel: Up to 200°C (392°F) Galvanized steel: Up to 250°C (482°F) Stainless steel: Up to 300°C (572°F) |
|---|---|
| Thermal Expansion | Minimal (varies by material) |
Mechanical Properties
| Tensile Strength | ≥500 MPa |
|---|---|
| Elongation | ≥20% |
| Surface Finish | Smooth to prevent bag damage |
