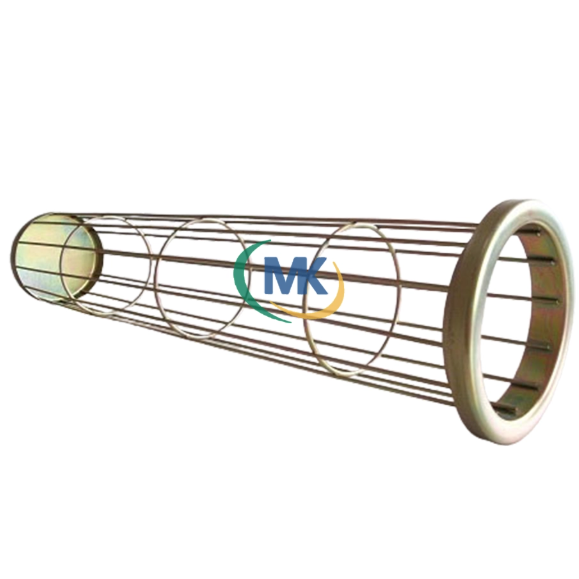

Cage With Galvanization Surface Treatment
Cage With Galvanization Surface Treatment
MingKai's Cage With Galvanization Surface Treatment is engineered for exceptional durability and corrosion resistance. The advanced galvanization process provides a uniform and thick coating, protecting the cage from rust and chemical exposure in harsh environments. Designed with precision, it offers reliable structural support and extended service life.
Product Advantages
High-quality galvanization for superior corrosion resistance
Uniform coating thickness ensures consistent protection
Precision manufacturing for enhanced durability and longevity
Customizable designs to meet specific industrial requirements
Material Properties
Premium steel core for strength and stability
Thick galvanized coating (≥150g/m²) for extended corrosion protection
Resistant to oxidation and rust in various environments
High tensile strength ensuring minimal deformation under pressure
Production Capacity
Daily Output: 1500 - 2000 units (custom specifications available)
Standard sizes from 100mm to 200mm diameter, other sizes upon request
Key Applications
Ideal for industries requiring robust corrosion protection in harsh environments:
Industrial Storage
Marine Applications
Power Transmission
Construction Sites
Product Specifications
Temperature Resistance
Continuous: ≤200°C; Instant: ≤250°C
Material
High-strength steel with galvanized coating
Wire Diameter
2.5 - 3.5 mm
Standard Sizes
100mm, 120mm, 140mm, 160mm, 180mm, 200mm diameter
Load Capacity
Up to 500 kg
Pressure Resistance
Withstands up to 8 bar
Technical Parameters
Core Specifications
| Product Name | Cage With Galvanization Surface Treatment |
|---|---|
| Wire Material | High-strength low-carbon steel |
| Wire Diameter (mm) | 2.5 - 3.5 |
| Galvanized Coating | Hot-dip galvanized ≥150g/m² |
| Standard Sizes | 100mm, 120mm, 140mm, 160mm, 180mm, 200mm diameter |
| Tensile Strength (N/mm²) | ≥600 |
| Continuous Operating Temp. | ≤200°C |
| Instant High Temp. | ≤250°C |
Chemical Properties
| Acid Resistance | Good (moderate resistance) |
|---|---|
| Alkali Resistance | Excellent |
| Oxidation Resistance | High |
| Corrosion Resistance | Very high (galvanized protection) |
Structural Characteristics
| Wire Spacing | 70 - 90mm (customizable) |
|---|---|
| End Ring Thickness | 3.0 - 4.0mm |
| Bottom Ring | Reinforced design for added stability |
| Top Collar | 1.2 - 1.8mm thick steel plate |
