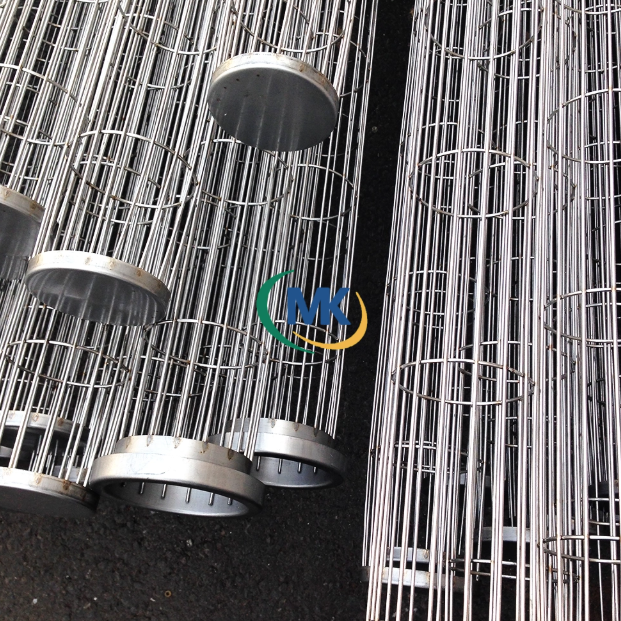

Filter Cage
Our Filter Cages are precision-engineered to provide reliable support for filter bags in dust collection systems. Constructed with high-quality materials and advanced manufacturing techniques, these cages ensure optimal filter bag performance and longevity. Designed to withstand harsh industrial environments, our filter cages offer superior resistance to corrosion, abrasion, and deformation, making them the ideal choice for a wide range of applications.
Product Advantages
High-strength construction for reliable filter bag support
Precision welding for uniform structure and durability
Corrosion-resistant coatings for extended service life
Customizable designs to meet specific application needs
Material Properties
Premium carbon steel or stainless steel construction
Galvanized or powder-coated finishes for corrosion resistance
High tensile strength for minimal deformation under pressure
Uniform wire spacing for optimal airflow and dust release
Production Capacity
Daily Output: 2000 - 3000 units (custom specifications available)
Standard diameters: 120mm - 180mm, lengths up to 8 meters
Key Applications
Ideal for industries requiring reliable dust collection and filtration:
Power Generation
Cement Production
Chemical Processing
Metals Manufacturing
Product Specifications
Diameter Range
120mm - 180mm
Length
Up to 8 meters (customizable)
Wire Diameter
3.0mm - 5.0mm
Surface Treatment
Galvanized, Powder Coated, Stainless Steel
Connection Type
Snap Ring, Flange (Customizable)
Max. Operating Pressure
Up to 0.8 MPa
Technical Parameters
Core Specifications
| Product Name | Filter Cage |
|---|---|
| Material | Carbon Steel, Stainless Steel (304, 316) |
| Diameter Range | 120mm - 180mm |
| Length Range | 1m - 8m (customizable) |
| Wire Diameter | 3.0mm - 5.0mm |
| Wire Spacing | 80mm - 100mm (standard) |
| Connection Type | Snap Ring, Flange, Custom |
| Surface Treatment | Galvanized, Powder Coated, Electroplated |
Mechanical Characteristics
| Tensile Strength | ≥500 MPa |
|---|---|
| Yield Strength | ≥300 MPa |
| Elongation at Break | ≥20% |
| Weld Strength | ≥80% of base material strength |
Environmental Characteristics
| Temperature Resistance | Galvanized: ≤150°C Powder Coated: ≤200°C Stainless Steel: ≤400°C |
|---|---|
| Corrosion Resistance | Good in normal industrial environments Excellent with specialized coatings |
| Abrasion Resistance | High, with minimal wear under normal conditions |
