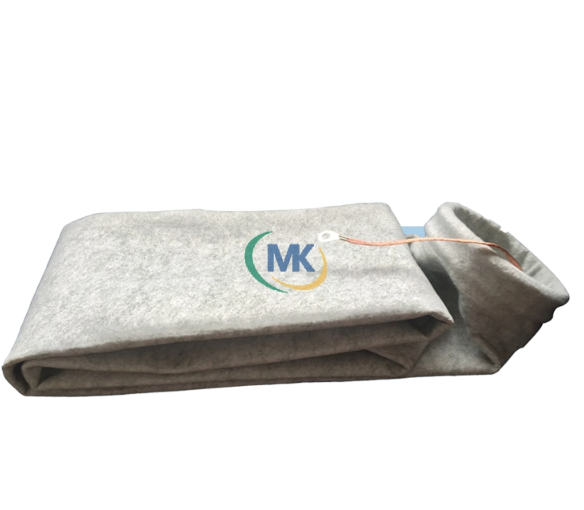

Blended Conductive Filament Dust Filter Bag
Blended Conductive Filament Dust Filter Bag
Our Blended Conductive Filament Dust Filter Bags are engineered to provide exceptional electrostatic discharge protection while maintaining high filtration efficiency. These innovative filter bags combine polyester fibers with stainless steel filaments to create a robust and reliable solution for applications requiring antistatic properties. The unique blend of materials ensures effective dust collection while preventing static buildup, making them ideal for environments with flammable dust or gases. With precise surface treatments and uniform structure, our filter bags deliver consistent performance and extended service life.
Product Advantages
Unique blend of polyester and stainless steel filaments for antistatic protection
Effective electrostatic discharge to prevent dust explosions
High tensile strength and dimensional stability
Precision surface treatments for optimal dust cake release
Material Properties

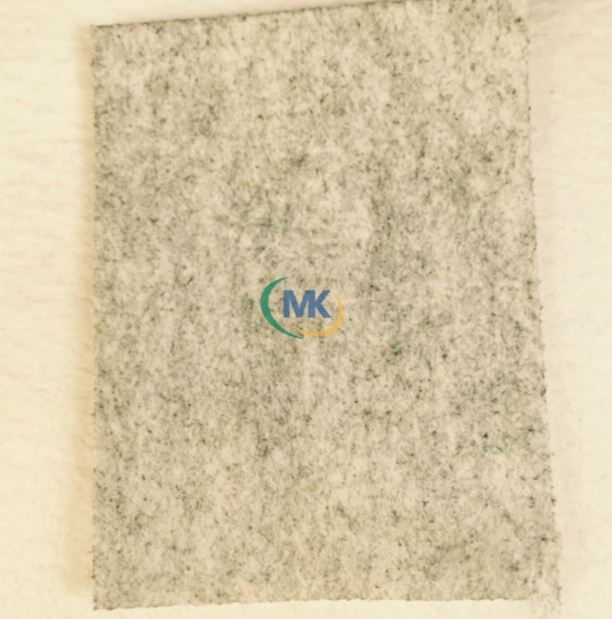

Polyester/steel fiber blend for optimal conductivity and filtration
Advanced needle punching technology for uniform structure
Surface treatments including singeing, calendering and heat setting
Consistent weight and thickness for reliable performance
Production Capacity
Daily Output: 1200 - 1800 units (custom specifications available)
Standard sizes from 120mm to 160mm diameter, other sizes upon request
Key Applications
Ideal for industries requiring antistatic filtration solutions in environments with flammable dust or gases:
Chemical Processing
Electronics Manufacturing
Powder Coating
Pharmaceutical Production
Product Specifications
Temperature Resistance
Continuous: ≤120°C; Instant: ≤140°C
Material
Polyester/Stainless Steel Fiber Blend
Weight
500 g/m² ±5%
Thickness
1.6 ±0.1 mm
Air Permeability
200-350 L/M²/S
Surface Treatment
Singeing, Calendaring, Heat Setting
Technical Parameters
ore Specifications
| Product Name | Blended Conductive Filament Dust Filter Bag |
|---|---|
| Material | Polyester/Stainless Steel Fiber Blend |
| Weight (g/m²) | 500 ±5% |
| Thickness (mm) | 1.6 ±0.1 |
| Air Permeability | 200-350 L/M²/S |
| Surface Treatment | Singeing, Calendaring, Heat Setting |
| Continuous Operating Temp. | ≤120°C |
| Instant High Temp. | ≤140°C |
Mechanical Characteristics
| Tensile Strength (N/5*20cm) | Warp: ≥1060 | Weft: ≥1150 |
|---|---|
| Elongation at Break (%) | Warp: <35 | Weft: <45 |
| Electrical Resistance | ≤10⁹ Ω |
| Finish Treatment | Singeing, calendering, heat setting |
Chemical Properties
| Acid Resistance | Good |
|---|---|
| Alkali Resistance | Moderate |
| Abrasion Resistance | Excellent |
| Hydrolysis Resistance | Moderate |
