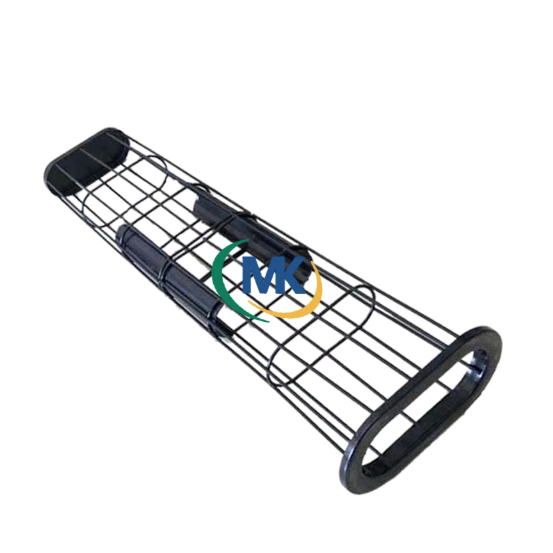

Filter Cage
Our Filter Cage is a critical component in industrial dust collection systems, providing essential support for filter bags and ensuring optimal filtration efficiency. Designed with precision engineering, our cages are crafted from high-quality materials to withstand harsh environments, resist corrosion, and maintain structural integrity over extended periods. Available in various configurations, our filter cages are customizable to meet specific application requirements, offering reliable performance and extended service life.
Product Advantages
Precision-engineered for optimal support and filtration efficiency
High-quality materials ensure durability and corrosion resistance
Smooth surface finish prevents filter bag abrasion and extends service life
Customizable designs to fit various filter bag sizes and configurations
Uniform wire spacing for even airflow distribution
Available with various surface treatments for specific environments
Easy installation and removal for simplified maintenance
Material Options
Low-carbon steel with various surface treatments
Galvanized steel for enhanced corrosion resistance
Stainless steel (304, 316L) for high-temperature and corrosive environments
Epoxy-coated steel for superior chemical resistance
Production Capacity
Daily Output: 8,000-12,000 pieces, depending on specifications
Standard Sizes: Customizable to fit various filter bag dimensions (custom designs available)
Key Applications
Essential for industrial dust collection systems across various sectors:
Power Generation
Cement Production
Chemical Processing
Metal Processing
Product Specifications
Standard Sizes
Diameter: 120mm-160mm; Length: 2m-8m (custom sizes available)
Wire Diameter
3.0mm-5.0mm (depending on application)
Temperature Resistance
Up to 300°C (572°F) depending on material selection
Corrosion Resistance
Excellent resistance in various environments
Vertical Rods
12-24 rods (customizable based on requirements)
Ring Spacing
100mm-200mm (optimized for support and airflow)
Technical Parameters
Core Specifications
| Product Name | Filter Cage |
|---|---|
| Model | FC Series |
| Material Options | Low-carbon steel, galvanized steel, stainless steel (304, 316L), epoxy-coated steel |
| Wire Diameter | 3.0mm-5.0mm |
| Standard Sizes | Diameter: 120mm-160mm; Length: 2m-8m (custom sizes available) |
| Vertical Rods | 12-24 rods (customizable) |
| Ring Spacing | 100mm-200mm |
| Finish | Smooth surface to prevent bag abrasion |
Chemical Properties
| Corrosion Resistance | Excellent (varies by material selection) |
|---|---|
| Acid Resistance | Stainless steel and epoxy-coated options offer good acid resistance |
| Alkali Resistance | Stainless steel and epoxy-coated options offer good alkali resistance |
Thermal Characteristics
| Temperature Resistance | Low-carbon steel: Up to 200°C (392°F) Galvanized steel: Up to 250°C (482°F) Stainless steel: Up to 300°C (572°F) |
|---|---|
| Thermal Expansion | Minimal (varies by material) |
Mechanical Properties
| Tensile Strength | ≥500 MPa |
|---|---|
| Elongation | ≥20% |
| Surface Roughness | ≤6.3μm |
